Description
- Requires a 3/4 – 1 HP pump with a 5/8 – 1 in. city water meter size and a 10 to 24 GPM flow rate (not included)
- Valve is recommended for use in an irrigation system driven by city water
- Can run from 2 to 6 zones based on the chosen cam configuration (3 and 4 zone installations require a special ‘white’ cam)
- 10 PSI min pressure rating, 1 in. inlet/outlet, and requires 10-25 GPM flow rate
- Manual and automatic operation
- An anti-siphon valve (not included) is recommended and may be required for safe operation of the FIMCO hydro indexing valve on a city water installation
- Only use clear PVC cement (not included) and allow the valve 2 hours to set before subjecting it to internal water pressure, do not use fast setting blue glue as it will rapidly deteriorate the ABS plastic used in construction of the indexing valve, purple primer is similar and must be used only on the PVC pipes and not the valve housing

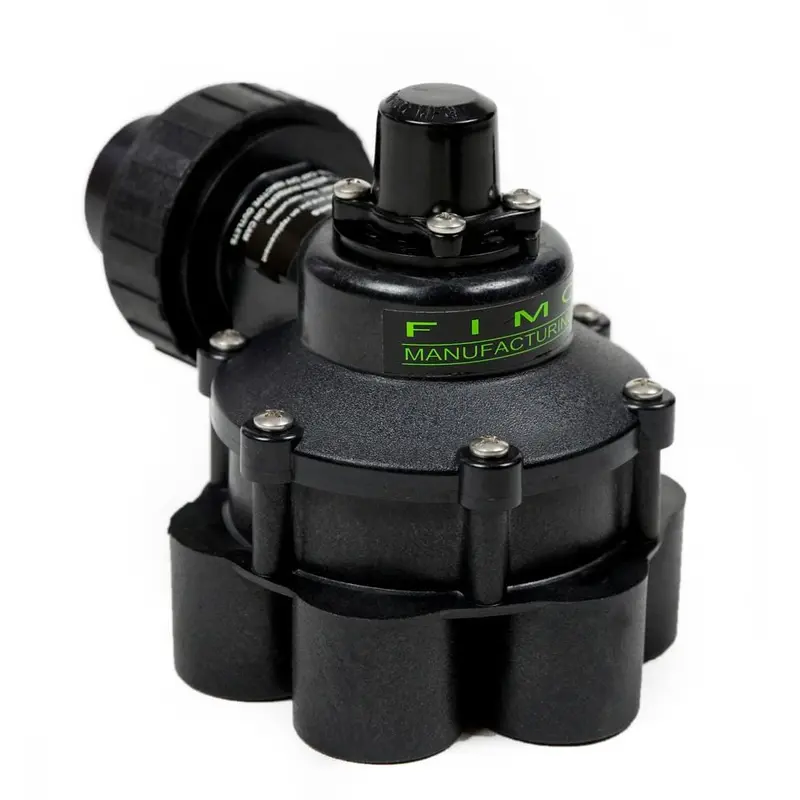

- FIMCO 1 in. 6 zone valve comes with an included 5 zone cam and can be used as either a 6 or 5 zone valve depending on how it is cammed
- FIMCO 1 in. 6 zone valve requries a 3/4 to 1 HP pump 5/8-1 in. city water meter size and a 10 to 24 GPM flow rate
- Great alternative to individual solenoid valves
- 1 valve can replace (6) 1 in. solenoid valves
- 1 above ground FIMCO valve controls all zones eliminating the need to dig into the ground to locate electric solenoid valve boxes
Features
| Item Weight | 1.1 |
| Installation | Above Ground |
| Maximum Working Temperature (F) | 130 |
| Number of Outlets | 6 |
| Pressure Rating | 10 PSI Minimum |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Thread Type | none |
| Valve Type | Indexing |
| Returnable | 180-Day |
| Operation | Automatic,Manual |
| Product Weight (lb.) | 2 |
| Compatible Pipe Material | PVC |
| Maximum Pressure (psi) | 80 |
| Connection | Slip-Joint |
| Irrigation System Component | Valve |
| Pack Size | 1 |
| Package Quantity | 1 |
| Inlet Size (in.) | 1 |
| Product Height (in.) | 6.25 |
| Outlet Size (in.) | 2 or less |
| Product Width (in.) | 5.5 in |
| Product Length (in.) | 6 in |
| Manufacturer Warranty | 1 year replacement |
