Description
Siemens GFCI circuit breakers are UL Listed and CSA Certified as Class A devices. These circuit breakers offer the new Self-Test and Lockout feature as required by UL 943, enabling the GFCI to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself and locks out the homeowner from resetting the device, reducing the possibility of the homeowner incorrectly assuming that the device was tripped to prevent a ground fault.

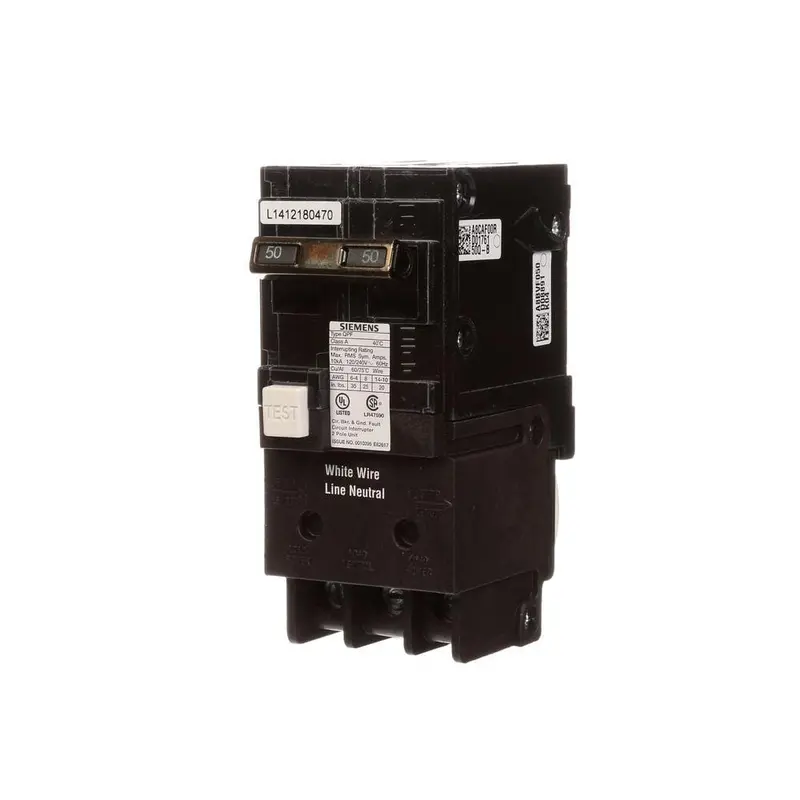

- Double-pole, 240-Volt, 50 Amp GFCI circuit breaker
- 10 kA interrupting rating
- Includes self-test as required by UL 943 as an added safety feature
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
- Resists false tripping (shielded to prevent RF interference)
- Provides Class A GFCI protection
- White line neutral (pigtail) must be connected to the panel neutral for the device to function
Features
| Item Weight | 1.11 |
| Voltage (volts) | 240 |
| Number of Poles | 2 |
| Maximum Amperage (amps) | 50 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Interruption Type | GFCI |
| Returnable | 180-Day |
| Mounting Type | Plug-On |
| Breaker Type | Double Pole |
| Electrical Product Type | Breaker |
| Product Weight (lb.) | 1 lb |
| Product Height (in.) | 7.75 in |
| Product Depth (in.) | 2 in |
| Product Width (in.) | 5.25 in |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | UL Listed |
ARB775W
