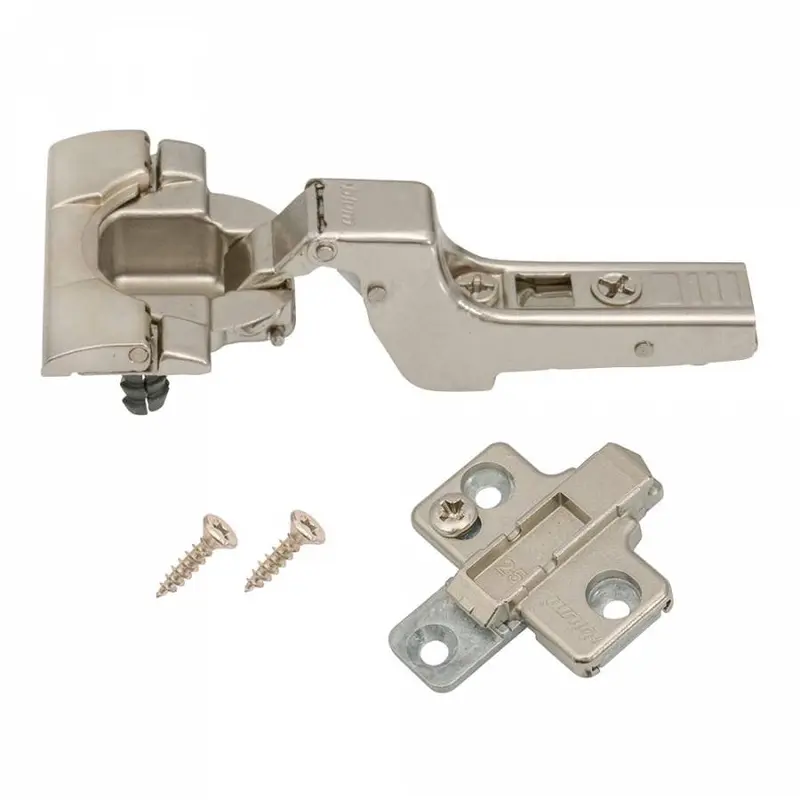

Blum Inserta Hinge for Frameless Inset Cabinets – Bundle

Description

• Blum Inserta full-cranked hinge bundle for full inset doors on frameless cabinets.
• Inserta hinges install on the door without using screws. On the hinge cup is a cover that acts as a lever. By pressing down on the lever, an anchor device is expanded which secures the hinge. This type of hinge is also known as a tool-free or toolless hinge.
• This hinge uses two 8mm (5/16″) holes where the wood screw holes would normally be to secure the hinge. See the document found under Downloads to view the Inserta screw hole pattern.
• The hinge and mounting plate attach to each other by snapping on.

What’s Included

• 1 x Blum Inserta Full-Cranked Hinge
• 1 x Frameless Mounting Mounting Plate
• Two #6 x 5/8″ Wood Screws for the Mounting Plate

Available for purchase separately:

• Cover Plate for the Hinge Arm – Hides the screws on the hinge arm providing a cleaner appearance (SKU 268002)
• Soft-Close Add-On Device – Eliminates slamming of the door and dampens the closing action (SKU 268230)
• Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
• Restriction clip. Limits angle of opening to 86 degrees (SKU 701113)
• Blum Touch Latch for Self-Closing Doors (SKU 268822)
• 35mm Forstner Bit, for new installations (SKU 204000)
• Ecodrill, installation jig, for new installations (SKU 701000)

B10120
