Hydraulic Secure Grip Valve Change-Out Tool | VC10/25TEMAX

Description

Features :

• The Equalizer VC Range of Valve Change-Out tools has been developed to assist in the removal of valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations.
• Spreading force of 22.4 imperial tons (200 kN) if used in pairs as recommended.
• Carry-Cases with foam inserts

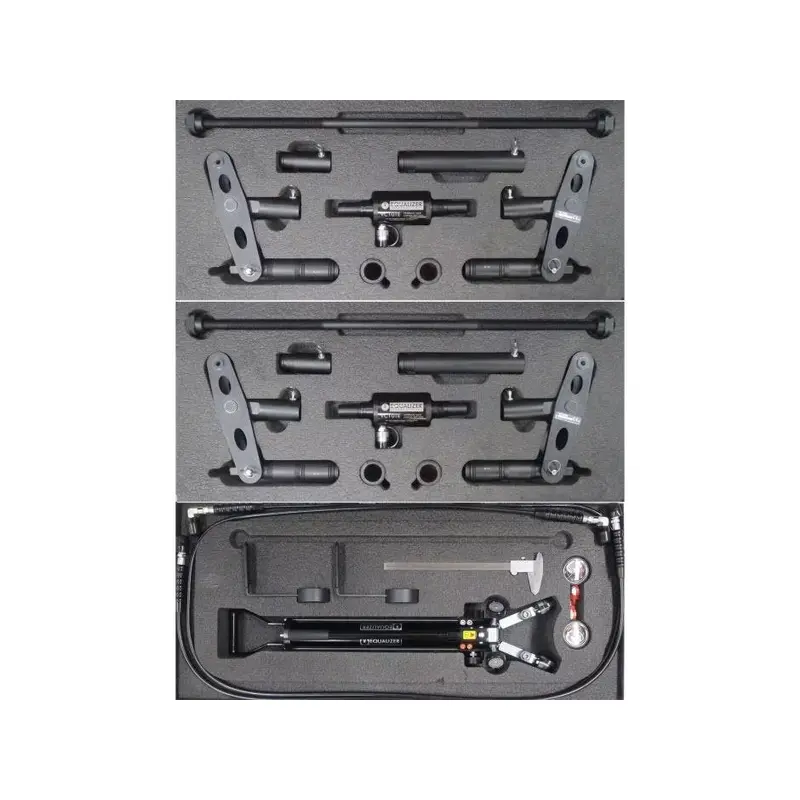

Maxi Set Includes :

• Maxi Set Includes:
  2 x VC10/25TE Tool
  COLLETS (Available Separately):
  4 x M76 (3″) Collets
  4 x M80 (3 1/4″) Collets
  4 x M84 (3 3/8″) Collets
  4 x M90 (3 1/2″) Collets
  4 x M95 (3 3/4″) Collets
  4 x M100 (4″) Collets
  1 x HP1000D Hydraulic Hand Pump
  2 x Hydraulic Gauges with manifolds
  2 x 2.0 m Hydraulic Hoses
  2 x Secure Grip Safety Blocks
  1 x Square Drive Flexible Handle
  1 x Vernier Calliper

Specifications:

• Maximum Operating Pressure (bar) : 690
• Power Source : Hydraulic
• Capacity (metric tons) : 10
• Capacity (kN) : 100
• Stroke (mm) : 151
• Tip Clearance (mm) : 0
• Weight (kg) : 146
