Description

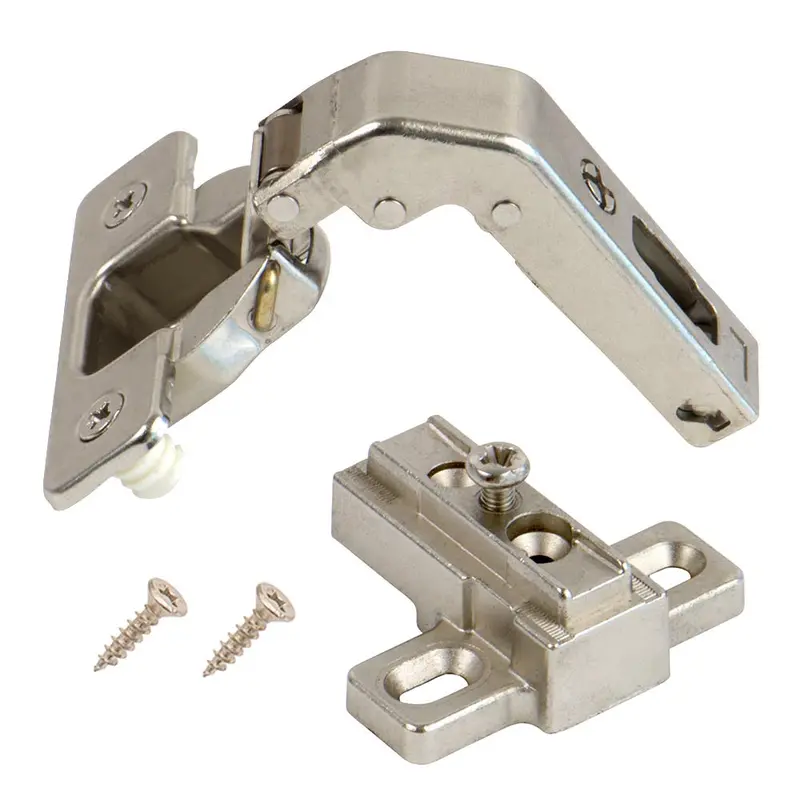

This is a blind corner hinge for inset doors. A typical inset door is hinged to a panel that is positioned at a 90 degree angle to the door. A blind corner cabinet has a door that is hinged to a panel that is in the same plane (inline) as the door. The door is “flush” with the cabinet panel. See the document found under Downloads to view a diagram of this type of installation. This hinge is unique in that it is much shorter than a typical Blind Corner Inset Door hinge. It is useful when you have a tight space situation.
- Only needs a minimum of 32 mm (1-1/4″) of panel space for the end of the hinge and the mounting plate.
- Hinge is adjustable after installation
- This product is sold as a set. You would typically order two to hang one door. A set includes one hinge, one mounting plate, and required fasteners.
Installation Information
- Hinge cup size is 35mm (1-3/8″)
- Minimum hinge cup depth is 11 mm (7/16″)
- Bore distance range is from 3 mm to 8 mm
- Hinge is adjustable after installation
- This product is sold as a set. You would typically order two to hang one door. A set includes one hinge, one mounting plate, and required fasteners.
